High-Performance AI Edge Computing in a Rugged 3U VPX Form Factor
Abaco SBC3902 GPU-based single board computer


The SBC3901 is a 3U VPX Compute Intensive Single Board Computer, designed for both autonomous and embedded edge computing systems that require real-time GPU processing, instantaneous data transfer, dedicated encode/ decode capabilities, and deep learning (DL) algorithms.

Based off the NVIDA Ampere architecture, this card uses the NVIDIA® Jetson AGX Orin (Industrial) GPU which has 2048 NVIDIA CUDA® cores and 64 Tensor Cores, along with DL and vision accelerators. The NVIDIA Jetson AGX Orin is the most powerful AI edge computer, delivering up to 248 TOPS of AI performance for powering autonomous systems.

The high bandwidth Ethernet Data Planes (1x100GBE and 1 x 25GbE) complement 205 GB/s of memory bandwidth, 64 GB of DRAM, and 64GB eMMC internal storage, enabling the module to feed multiple concurrent AI application pipelines.

An eight lane PCIe Gen 4 expansion plane and further 25GbE control plane are offered in alignment with the Compute Intensive slot profile in the Sensor Open System Architecture (SOSA) technical standard.

Key Features:

  • High-Performance Computing: Equipped with the NVIDIA® Jetson AGX Orin™, the SBC3901 delivers exceptional AI capabilities, including 2048 CUDA® cores and 64 Tensor Cores, making it suitable for complex AI and ML tasks.
  • SOSA Aligned: Aligns with a slot profile specifically designed for compute-intensive applications.
  • Small Form Factor Computer: Designed with GPU & CPU compute capabilities with AI inferencing, deep learning, and dedicated Codec engines
  • High Bandwidth Data Planes: Features 1 x 100GbE and 1 x 25GbE data planes and 1 x 10GbE control plane for high-speed data transfer.


To learn more about this groundbreaking solution, SBC3901, click here



AXIS Support
Data Plane
1x XMC
SOSA-Aligned Single Board Computer with 100GbE, PCIe Gen 4, Security FPGA
Xeon W CPU

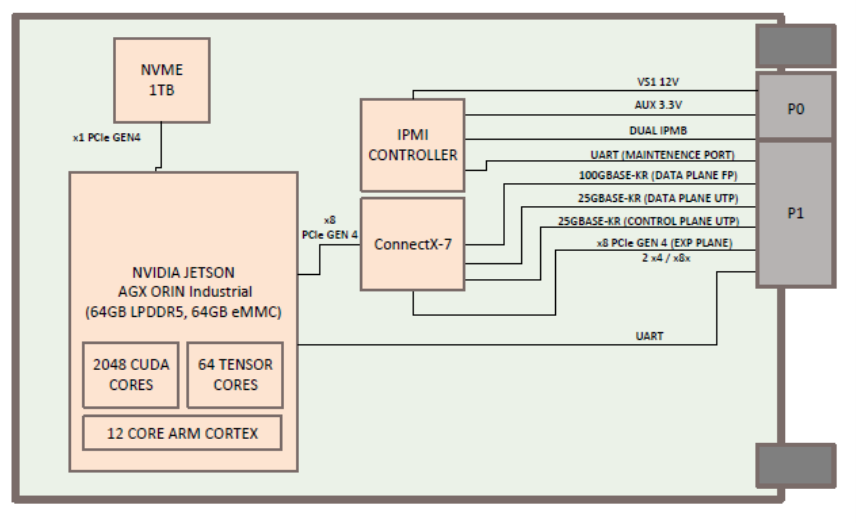

Block Diagram

Request A Quote
