SBC3513L

SOSA-Aligned Single Board Computer with 100GbE, PCIe Gen 4, Security FPGA
SBC3513L

Overview

Flexible Deterministic Ethernet Options

For additional flexibility to suit specific application needs, the SBC3513L’s dual ultra-thin pipes can now be switched to support FPGS based deterministic Ethernet capabilities including TSN, for automotive, industrial, and flight certified applications.

Unlocking Performance: The Next-Gen SBC3513L

Discover the cutting-edge SBC3513L Single Board Computer by Abaco Systems. Engineered for enhanced processing performance and bandwidth, this SOSA-aligned solution features the powerful Intel® Xeon® W processor. With eight cores operating at 2.6GHz, 64 GBytes of DDR4 RAM, and up to 480 GBytes of nVME SSD, the SBC3513L sets a new standard in rugged computing.

















Seamless Upgrades and Enhanced Capabilities

Experience a seamless upgrade path from the SBC3511, with the SBC3513L offering enhanced performance and speed capabilities. GPIO is moved to the FPGA for reduced latency, while upgrades to NVRAM, DisplayPort, and more extend the board's capabilities. Despite the added features, power consumption remains around 100W, ensuring efficiency and reliability.

Robust Security Features

Security is paramount with the SBC3513L, boasting built-in features such as an unclonable function (PUF), user-accessible hardened cryptographic blocks, and protection against side-channel attacks. These silicon-based AT features ensure robust security for mission-critical applications.

Comprehensive Software Support

Abaco offers extensive software support for the SBC3513L, including firmware options, SDKs, and compatibility with Windows 10/11 and Linux Fedora, Red Hat, and Ubuntu. Explore the full capabilities of the SBC3513L by downloading the datasheet or contacting us today.



To learn more about this groundbreaking solution, SBC3513L, click here









Specifications

AXIS Support
Yes
Data Plane
100GbE
Form Factor
3U VPX
Maximum Memory
64 GB DDR4 SDRAM soldered with ECC
Mezzanine
1x XMC
Other
SOSA-Aligned Single Board Computer with 100GbE, PCIe Gen 4, Security FPGA
Processor
Xeon W CPU
Ruggedization
Level A-E

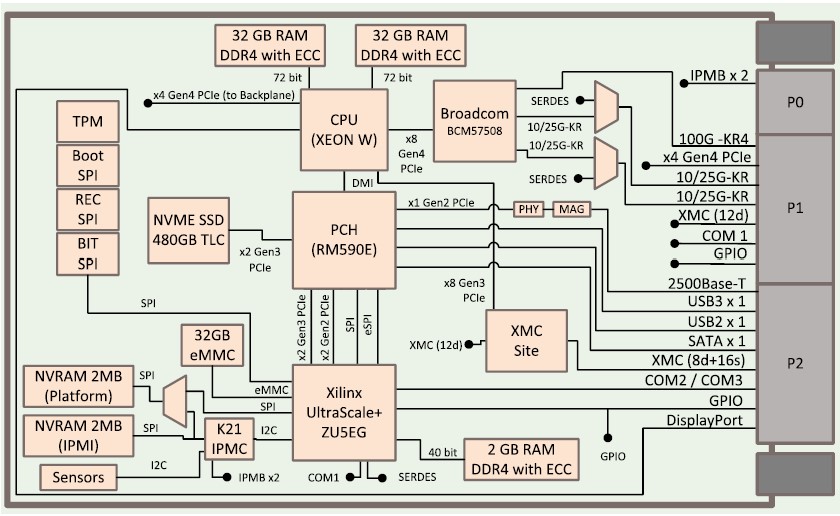

Block Diagram
