Quad Gigabit Ethernet PCI -X NIC with pluggable transceivers


This product reached the end of its lifecycle (end-of-life) on August 31, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

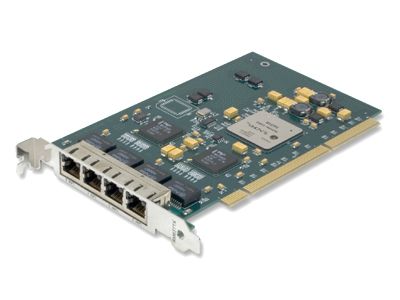

RM677TX is a PCI edge card designed to offer maximum 1000Mbit Ethernet connectivity. Using 10/100/1000BaseT,the RM677TX is capable of full duplex operation. The Ethernet/PCI interface includes a powerful DMA engine with 64KB deep FIFO buffers. This assures continuous, full bandwidth operation with minimum PCI overhead. The RM677TX has RJ-45 connectors. RM677TX has a rich suite of host off-loading feature including: Packet filtering based on checksum errors; SNMP and RMON statistic counters; Hardware TCP checksum off-loading; and Support for various address filtering modes such as 16 exact matches (unicast or multicast), 4096-bit hash filter for multicast frames and Promiscuous unicast and multicast. Two RM677TX boards can be directly cabled with a simple "cross-over". This configuration creates a full duplex 1000Mbit dedicated data path (for each port) - delivering high bandwidth at very low cost. More complex, dedicated interconnects can be created using a hub or switch. Both point-to-point and switched hubs, in full duplex mode, remove many determinism concerns raised with traditional Ethernet solutions. This makes the RM677TX an excellent candidate for high performance interconnects that require real time determinism. Software drivers are available for all the popular operating systems (e.g. VxWorks, HPUX, LynxOS, Digital UNIX, Windows NT, Solaris etc.). These drivers have been carefully designed and implemented to fit within the LAN protocol stack of the host operating system. All facilities available from the host OS can be used across the RM677TX.

  • RoHS compliant versions available
  • Interchangeable, pluggable transceivers
  • Jumbo Frames capable
  • DMA engine
  • RJ-45 connector
  • Quad 10/100/1000BaseT Ethernet ports
  • Full 1000Mbit point to point performance
  • PCI-X, PCI 64-bit/66MHz
  • Acrylic or polyurethane conformal coating available


Form Factor
Port Type
Front Panel I/O Connectors
PCI Controller/ Ethernet MAC
Intel 82546
