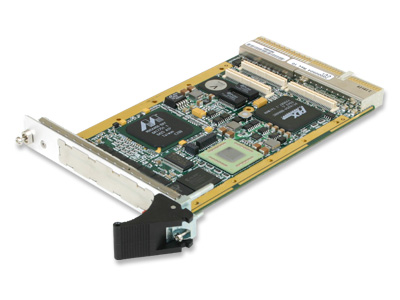

RL4

3U CPCI CPU board based on PowerPC pro

This product reached the end of its lifecycle (end-of-life) on May 31, 2007

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

Overview


RL4 is a 3U PowerPC 75x CPCI single board computer at 400 to 500 MHz. Up to 128 MB 100 MHz SDRAM with ECC. Up to 64MB Flash. Fast Ethernet 10/100Mbit. PMC extension slot. Two async. RS-232 and. RS-422/485. Four timer/counters. Two DMA channels. Conduction cooled version available.



  • PowerPC 75x CPU at 400 to 500 MHz
  • Fast Ethernet 10/100 Mb
  • PMC extension slot
  • Two asynchronous - RS-232 and RS-422/485

Specifications

Form Factor
cPCI 3U
Processor
IBM 750 @ 500 MHz
# Expansion Slots
1
Maximum Memory
128 MB DRAM with ECC
Serial I/O
4
Transition Modules
RLTM
Bus Interface Chip
TI PCI2050B
Ethernet
10/100BaseT
System/ Peripheral
System
Ruggedization
Conduction Cooled
