Standalone Rugged Ethernet Switch


This product reached the end of its lifecycle (end-of-life) on September 23, 2009

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

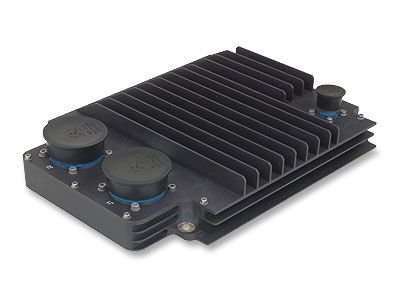

RES-110 is a Layer 2 and Layer 3 (routing) managed Gigabit Ethernet switch in a rugged, self-contained chassis. It is a stand-alone switch where the embedded processor performs all Layer 2 and Layer 3 management functions with no host CPU intervention. Switch management can be performed through a serial RS-232 interface using CLI or an in-band Ethernet interface using Telnet, HTTP or SNMP. The RES-110 is powered by a 28V power supply designed to MIL-STD-704E with optional 50ms hold-up. Built for rugged, heat-sensitive environments, the RES-110 is conduction cooled and conformal coated, supporting a temperature range of -40º to +71ºC. It has two 128-pin series connectors and one 6-pin D38999 connector. Just over four pounds, the RES-110 sports significant decreases in wiring harness weight and volume to substantially reduce build time. With its enhanced protection from heat and environmental contaminates, the RES-110 is ideal for military applications such as avionics, radar and harsh environment networking.

  • Extensive Layer 2 / Layer 3 protocol support
  • In-Band and RS-232 port management
  • Compact package, 10.072" x 7.323" x 2.598"
  • 10 managed 10/100/1000BaseTX ports
  • Lightweight – under 4.3 lbs
  • Proven Ethernet switch design
  • High reliability


Port Type
Management Type
Fully Managed Layer-2/3+
Military Specifications
Network Operations
L2 & L3 switching and routing (IPv4)
Product Type
Gigabit Ethernet Switch
