RCNIC-A2PAX Interface

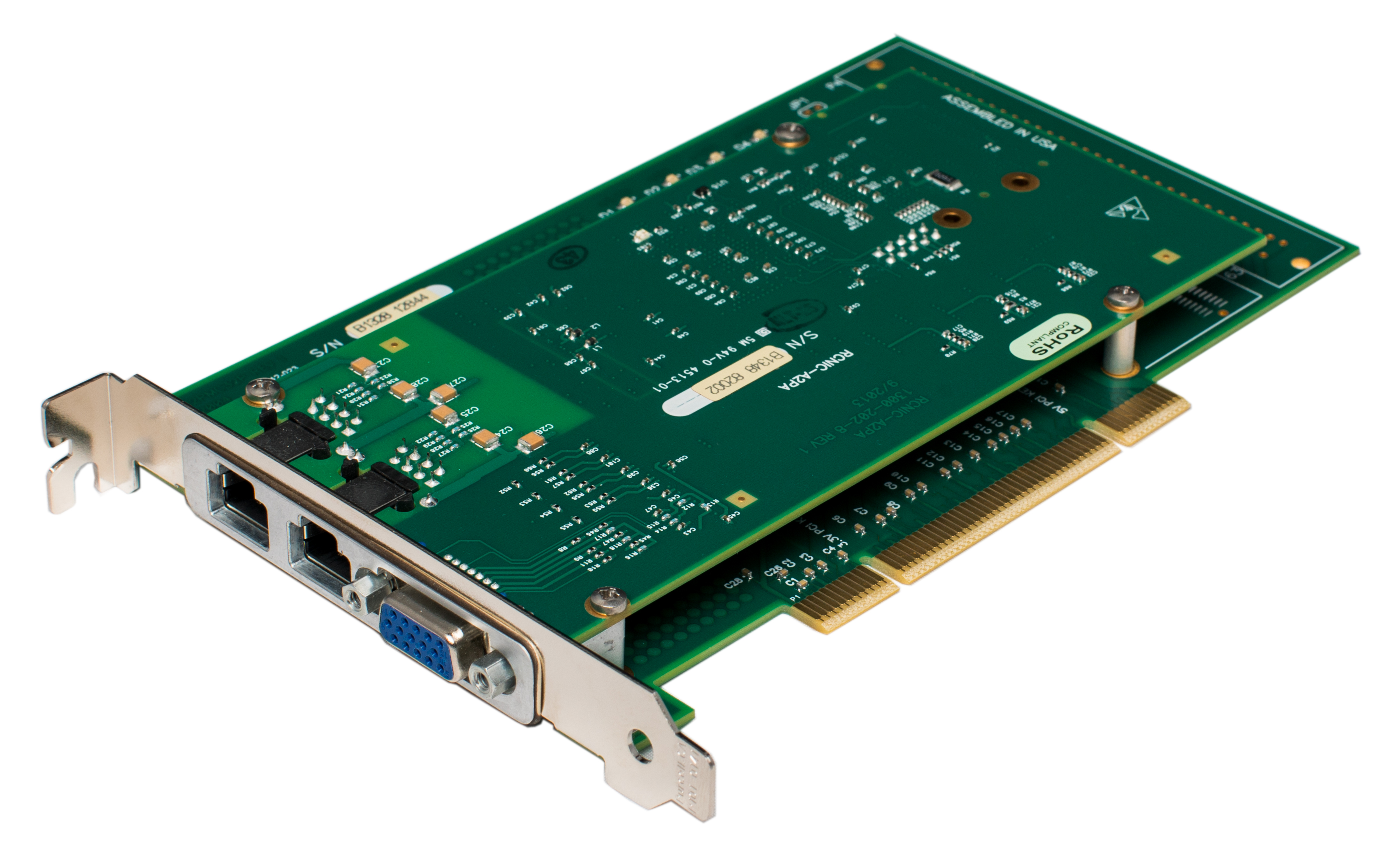

Dual port 10/100 full duplex PCI card (PMC on carrier) for AFDX / ARINC 664 support

This product entered a Restricted Production Phase (RPP) on June 14, 2021

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

The RCNIC platform is a high performance, PCI module (PMC on carrier card) for the AFDX / ARINC 664 protocol. With two independent ports for traffic monitoring, traffic generation, external triggering and analysis, the RCNIC provides high-resolution time-tagging of incoming packets simultaneously with highly accurate traffic generation. An IRIG-B receiver/generator is included for synchronization to an external IRIG-B time source and for synchronization between multiple RCNIC boards.

Our exclusive pipeline architecture avoids the local bottlenecks of CPU-based interface solutions, and significantly outperforms standard NIC cards. The interface can be easily configured as either one dual-redundant AFDX / ARINC 664 port, or two high performance, independent ports. Simultaneous, real time traffic generation on both ports is highly accurate. Input and output triggers are provided, errors are detected or can be injected, while extensive link and protocol-level statistics are available for analysis.

Programs have complete access to all frame and header data, can easily wrap data and perform extensive BIT testing. Each incoming packet is tagged with a 20 nsec resolution, 64-bit time-tag.

  • SDK includes high-level AFDX API, low-level (raw frame-based) CPCAP API, and .NET integration libraries at no additional charge
  • PCI card (PMC on carrier) for AFDX/ARINC 664 Part 7 support
  • Two independent 10/100 MHz full duplex ports


Specifications

AFDX Stack
AFDX / ARINC 664 protocol stack
Analyzer
BusTools
Application
Lab, Simulation, Test
Channels
2
Form Factor
PCI
Options/ Notes
IRIG Support.BusTools/AFDX analyzer available.
Ports
2
Processor
FPGA
Ruggedization
Convection Cooled
Temp Range
Commercial
