RAF-EC-2P Interface

RAF-EC-2P RoHS Dual Port ARINC 664 ExpressCard Interface

This product entered a Restricted Production Phase (RPP) on December 27, 2021

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview

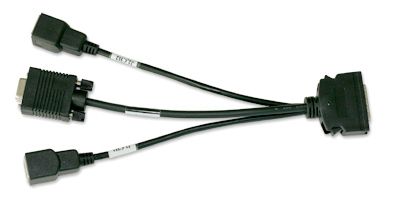

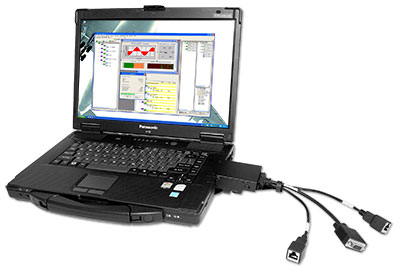

Abaco Systems RAF-EC-2P is a high performance interface for monitoring, generating or analyzing full-bandwidth AFDX/ARINC 664 protocol traffic. Abaco Systems  exclusive pipeline architecture maximizes packet throughput using parallel controllers and efficient DMA transfers, thereby avoiding the bottlenecks of CPU-based interface solutions.

Configurable as either one dual-redundant AFDX/ARINC 664 interface or two independent ports, users have complete access to all frame and header data. Each incoming packet is tagged with a 20 nsec resolution, 64-bit time-tag. Read time traffic generation is highly accurate. An IRIG-B receiver/generator is included for synchronization to external IRIG-B time sources and for synchronizing multiple CNIC boards. In addition, I/O triggers, error detection/injection, BIT, and link/protocol level statistics are provided.

  • Four bi-directional avionics level discretes
  • Two input and output triggers per channel
  • - Berkeley packet filter engine
  • - Integrated log file format
  • - AFDX/ARINC 664 API
  • - XML configuration format
  • Advanced Software Support
  • - Flexible packet capture API
  • - Link level error detection
  • - DMA transfer to host
  • - Full throughput capability
  • - Flexible scheduling modes
  • - Highly accurate
  • Advanced Transmission Scheduling
  • - Link level error detection
  • - DMA transfer to host
  • - Full throughput capability
  • - IRIG-B synchronization
  • Advanced reception features
  • - 20 nsec time-tags
  • SDK includes high-level AFDX API, low-level (raw frame-based) CPCAP API, and .NET integration libraries at no additional charge
  • RoHS Compliant
  • AFDX/ARINC 664 dual port interface (two independent 10/100 MHz duplex ports)
  • Built-in test features


Specifications

AFDX Stack
AFDX / ARINC 664 protocol stack
Analyzer
BusTools
Application
Lab, Simulation, Test, Notebook Portable
Channels
2
Form Factor
Express Card
Options/ Notes
IRIG comes standard, BusTools AFDX and AIL compatible
Ports
2
Processor
FPGA
Temp Range
Commercial
