R830RX-32 Interface

RoHS ARINC high density interface for PMC

R830RX-32 Interface

This product reached the end of its lifecycle (end-of-life) on December 22, 2017

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview


High density PMC can be used for development or deployment.

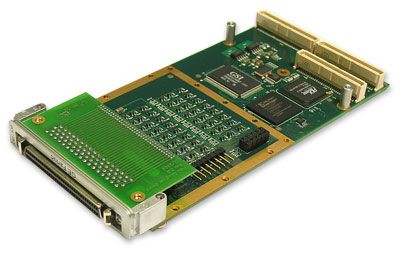

Designed for embedded, laboratory and simulator applications, the 32 receive channel R830RX provides complete, integrated databus functionality for ARINC 429, ARINC 575 and other selected 2-wire, 32-bit protocols. The R830RX supports maximum data throughput on all channels while providing onboard label filtering, multiple buffering options, time-tagging, and error detection, with support for either 33 MHz or 66 MHz PCI interfaces. IRIG-B Receiver (AM or DC/ TTL) can be utilized to synchronize time stamps across multiple boards. R830RX features include independent, software programmable data rates, and parity/bit count error detection. Various bus adapter configurations are also available, supporting PCI, PCI Express®, and CompactPCI platforms.

Software tools minimize integration effort, shorten time to implementation

Abaco Systems' software tools and solutions significanlty reduce the time required to integrate ARINC 429 and other avionics protocols into an application. Included with the R830RX is Abaco Systems' flexible, high-level API support for Microsoft Windows® 7, 8, 8.1, 10, Server 2012 R1/R2, Vista, XP, VxWorks®, and Linux Kernel Versions 2.4, 2.6 and 3.x. This powerful API supports multiple cards, and is compatible with Abaco Systems' API support on PCI, PCI Express®, PC/104-Plus, Express Card, CompactPCI/PXI, and XMC platforms. Support for BusTools/ARINC, our flexible, Windows-based GUI Bus Analyzer, LabVIEW and LabVIEW Real-Time is optionally available.

  • Front I/O or P14 rear I/O
  • 32 ARINC 429 Receive channels
  • Support for 2-wire ARINC 575
  • IRIG-B Receiver (front I/O)
  • Parity and bit-count error detection
  • Independent, software-programmable bit rates for all channels
  • High performance, high density interface with large buffers
  • Supports maximum data throughput on all channels simultaneously
  • Advanced, high-level software API included for Windows® 7, Vista, XP (32-bit/64-bit), VxWorks®, and Linux Kernel Versions 2.6, and 3.x
  • Easy-to-use BusTools/ARINC Windows-based GUI Bus analyzer available (up to 16 channels)
  • Carrier Card options available: PCI (-X), 3U cPCI (-3), 6U cPCI (-F) and PCI Express (-U)
  • Optional support for LabVIEW and LabVIEW Real-Time







Specifications

Form Factor
PMC
Application
Lab, Simulation, Test, Rugged
# ARINC Channels
32
Temp Range
Commercial XT
Analyzer
BusTools
Protocol
429, 575, 582 2-wire
