PSL09

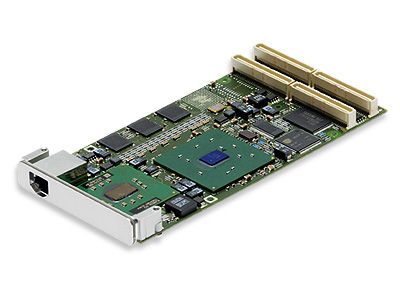

PSL09 is a Processor PMC based on Intel® Pentium® M Processor
DOWNLOAD DATASHEET
PSL09

This product entered a Restricted Production Phase (RPP) on September 1, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

PSL09 is a high-performance processor PMC using the Intel® LV Pentium® M Processor. It supports 256 MB DDR SDRAM with ECC, up to 1 GB Flash with EIDE and a VGA interface. The two fast Ethernet channels can be ordered in various rear and front I/O versions. Additionally the PSL09 is equipped with four USB 2.0 ports, one RS-232 interface and two SATA channels. The board supports the monarch and non-monarch mode in order to add processor intelligence on a carrier/base board via a PMC socket. With Intel® ULV Celeron® M Processor 1 GHz the PSL09 remains within a 11W thermal envelope. On request the PSL09 supports PICMG 2.15 R1.0 configuration 7.





  • Two Fast Ethernet, two SATA channels and VGA
  • Monarch and Non-Monarch mode
  • 256 MB DDR SDRAM with ECC
  • Intel® LV Pentium® M Processor @ up to 1.4 GHz





Specifications

Bus Interface Chip
PLX PCI6466
Maximum Memory
Up to 256 MB SDRAM with ECC
Processor
Intel Pentium M @ 1.4 GHz
Serial I/O
1
