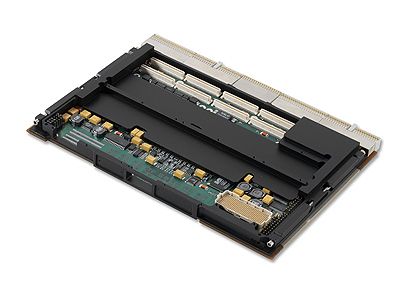

PowerPact6 CP1A

6U CPCI PowerPC 7448

PowerPact6 CP1A

This product reached the end of its lifecycle (end-of-life) on March 31, 2012

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview


The CP1A takes full advantage of the enhanced features of CompactPCI, such as support for hot swap and much higher I/O pin count. An extensive range of I/O coupled with two PMC sites and an AFIX (Additional Flexible Interface Xtension) pluggable module make the CP1A a versatile single slot solution for the defense and aerospace market space. The PowerPC 7448 processor and Discovery 3 Integrated System Controller, combined with industry-leading software support and experience in designing and manufacturing rugged electronics for over four decades, give the CP1A the edge in embedded, rugged computing performance.



  • 2x PCI-X PMC sites
  • 2x Gigabit Ethernet (PICMG 2.16 compliant)
  • Freescale 7448 @ 1.4 GHz
  • Five ruggedization levels, air- and conduction-cooled
  • For Ruggedization Levels, please see the configuration guide under the downloads tab

Specifications

Form Factor
cPCI 6U
Processor
7448 @ 1.4 GHz
# Expansion Slots
2
Maximum Memory
1 GB DDR SDRAM with ECC
Serial I/O
6
Transition Modules
CPCI6UX600
Bus Interface Chip
PLX 6254
Ethernet
Gigabit Ethernet
System/ Peripheral
Both
Ruggedization
Level 1-5 Air, Conduction Cooled

Accessories

CPCI6UX600-11 - Module is a customized interface adapter, compatible with 6U CompactPCI backplanes. It fits directly onto the rear P1 to P5 position of the backplane and is suitable for interconnection with the PowerPact CP1A host card.
