Intelligent Dual Port 10/100/1000BaseT Gigabit Ethernet NIC


This product reached the end of its lifecycle (end-of-life) on September 30, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

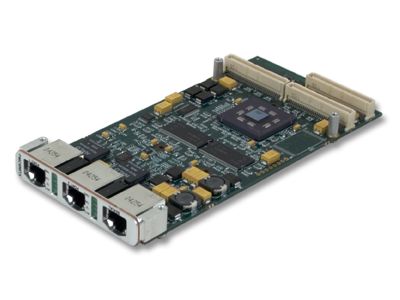

PMC696TX is an intelligent dual port 10/100/1000BaseT Gigabit Ethernet NIC that sets a new standard for high performance data exchange. Two 1000Mbit Ethernet controllers are combined with a local RISC processor and PCI-X system. The result is a very high performance, extremely flexible solution to a variety of data transfer requirements. Designed using standard protocols (1000Mbit Ethernet and PCI/PMC), the PMC696TX is intrinsically economical, both in terms of direct unit cost and ability to utilize commodity LAN hubs and switches. The on-board RISC processor allows the PMC696TX to be used in a wide range of applications. In the simplest mode, all control can be kept in the system host with the PMC696TX providing dual Ethernet access. Other options include dual rail access, shere the choice of physical access is automatically switched by the PMC696TX fail-over or TCP/IP off-loading. The local processor has dedicated 64 MBytes of EEC DDR SDRAM. Users can add application-specific functionality to the on-board firmware, migrating appropriate control into the PMC696TX. We provide full software support for all the popular software environments (e.g. VxWorks, HPUX, LynxOS, Digital UNIX, Windows NT, Solaris etc.). Each driver is designed to maximize the utility of the PMC696TX within the existing context of the host operating system.

  • Fail-over firmware
  • Trunking capabilities
  • 64MB of DDR SDRAM onboard (optional 128MB)
  • Dual 10/100/1000BaseT Ethernet ports
  • High performance RISC processor on board
  • PCI 64-bit / 66MHz
  • Not recommended for new designs
