PMC682/E

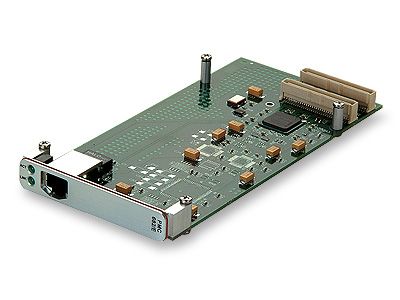

PMC682/E Single 10/100BaseTX Ethernet NIC PMC

PMC682/E

This product reached the end of its lifecycle (end-of-life) on February 28, 2011

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

We recommend the following alternative solutions:

Overview


PMC682/E is an Ethernet NIC providing one 10/100BaseTX engine on a PMC. The engine is capable of full duplex operation in both 10 and 100Mbit modes. A PCI to PCI bridge couples the Ethernet interface to the host PCI bus ensuring high performance with minimal PCI loading. The PMC682/E features full auto-negotiation facility allowing automatic configuration to the highest possible operating mode. This includes the option for automatic determination of both bandwidth and full duplex operation. Two PMC682/E boards can be directly cabled with a simple "cross-over". This configuration creates a full duplex 100Mbit dedicated data path - delivering high bandwidth at very low cost. More complex,dedicated interconnects can be created using a hub or switch. Both point-to-point and switched hubs, in full duplex mode, remove many determinism concerns raised with traditional Ethernet solutions. This makes the PMC682/E an excellent candidate for high performance interconnects that require real time determinism. Software drivers are available for most popular operating systems including Windows, Linux, LynxOS, VxWorks, and Solaris. These drivers have been carefully designed and implemented to fit within the LAN protocol stack of the host operating system. In this way, all facilities available from the host OS can be utilized across the PMC682/E.



  • Front I/O
  • 66MHz capable
  • One 10/100BaseTX port
  • Auto-negotiate to the correct speed and duplexity
  • Full duplex operation in both 10 and 100Mbit modes
  • Optional acrylic or polyurethane conformal coating

Specifications

Form Factor
PMC
Port Type
10/100BaseTX
Media
Copper
Ports
1
Front Panel I/O Connectors
RJ-45
PCI Controller/ Ethernet MAC
Intel 82551ER
