PMC-StarLite

PMC-StarLite is a switched-fabric interconnect in PMC form factor designed to link G4DSP VME boards.
PMC-StarLite

This product entered a Restricted Production Phase (RPP) on June 27, 2014

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

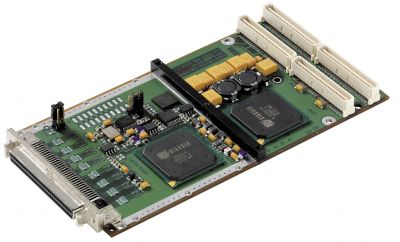

PMC-StarLite is a switched-fabric interconnect in PMC form factor designed to link G4DSP VME boards. Each PMC-StarLite provides a 6-port StarFabric switch with each port capable of 5 Gb/s peak communications, in the form of 2.5 Gb/s peak transit + 2.5 Gb/s peak receive duplex.

Four of the 6 ports are routed to the PMC front panel for front I/O or to the PMC P4 connector for rear I/O. The remaining 2 ports are connected on-board to the StarFabric-to-PCI bridge.

PMC-StarLite is available in air-cooled or conduction-cooled formats. A VxWorks driver is available for use with the G4DSP and PowerPC single board computer (SBC) products.





  • StarFabric-to-PCI bridge with 32/64-bit, 33/66 MHz PCI Interface and 2 StarFabric ports
  • StarFabric inter-board interconnect PMC
  • StarFabric 6-port switch with 5 Gb/s peak (duplex) aggregate bandwidth on each port, and 30 Gb/s peak non-blocking switching for high-availability
  • 4 StarFabric ports routed either to the front or rear
  • 2 StarFabric ports to the StarFabric-to-PCI bridge
  • PMC form factor
  • Air-cooled or conduction-cooled
  • Ruggedization Levels





Article - Advances in Radar Processing (Military & Aerospace Electronics July 2008)



Specifications

AXIS Support
Yes
Fabric Interface
StarFabric
Form Factor
PMC
Operating System (OS) Support
VxWorks
Ruggedization
Level 1-5 Air, Conduction Cooled
