PMC with single interface for PC-Card or CardBus


This product reached the end of its lifecycle (end-of-life) on November 30, 2006

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

We recommend the following alternative solutions:

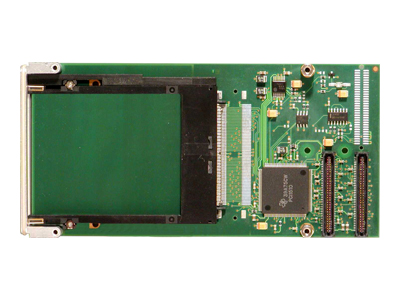

PMC-PCMCIA-FP3 is a single width 32-bit PMC with one interface for 16-bit PC-Card or 32-bit CardBus cards using a PC-Card controller and a power management unit. PC-Card is accessible through the front panel. The register map of the PC-Card controller is Intel 82365-DF compatible.

  • PCI 2.1 compliant interface
  • Standard single-width 32-bit PMC conforming to IEEE P1386.1
  • 1 PC-Card slot with hot insertion and removal
  • Card size: 149mm x 74mm
