PMC-MMSI Interface

12 Line BC or 12 RTs MMSI PMC Module

Avionics PMC-MMSI

Overview

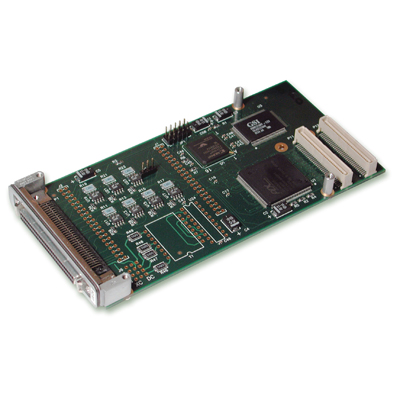

Our PMC-MMSI is a flexible, current release, EBR-1553/MMSI PMC mezzanine board interface. The PMC-MMSI includes advanced API (Application Programming Interface) software that will reduce application development time.

Standard features include LTC1685 RS-485 fail-safe transceivers, 1 MB of RAM, 48-bit message time-tagging, extensive BC & RT link-list structures, error detection, automatic/manual RT Status Bit and Mode Code responses, along with advanced BC functionality.

Transition cabling to standard 1553 cable jacks is provided for 8 lines and 1 monitor line.

  • Both terminal and composite monitoring modes
  • Includes high-level 32-bit libraries with source code included for 32-bit/64-bit Microsoft Windows XP/Vista/Server 2008/7, 32-bit Windows, and VxWorks
  • 12 Line BC with Composite Monitor Output or 12 Remote Terminals or Dual Mode Monitor (cable supports 8 lines and monitor)

Specifications

Form Factor
PMC
Application
Lab, Simulation, Test
Temp Range
Commercial XT
Channels
12
Operating Mode
Single Function
IRIG Time Code Option
Yes
