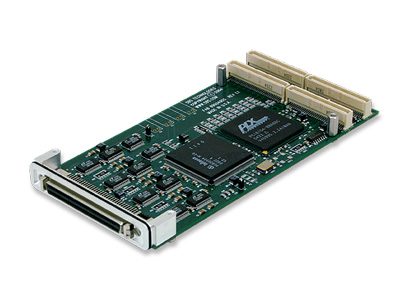

PMC-HS-SERIAL2

Quad channel high-speed serial PMC

PMC-HS-SERIAL2

This product reached the end of its lifecycle (end-of-life) on September 29, 2006

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview


PMC-HS-SERIAL2 is a PMC that provides 4 high-speed asynchronous or synchronous serial channels for space-contrained, high performance commercial and military data communications applications requiring high-speed serial with minimal CPU overhead. The card supports 33/66 MHz PCI operation and 3.3V or 5.0V PCI bus signaling. A maximum data rate of 10 Mb/s is supported for synchronous protocols using an external clock. Up to 2 Mb/s is supported for asynchronous protocols, with popular baud rates of up to 921.6 kbaud available using the standard 14.7456 MHz oscillator in RS-422 interface mode. Each of the 4 channels is fully programmable to support many high-performance serial communications protocols, such as synchronous, monosync, bisync, HDLC, SDLC, LAPD, ISDN, and PPP.

  • Front- and rear-panel I/O
  • Single-wide 32-bit, 33/66 MHz PMC
  • 3.3V or 5.0V PCI bus signaling
  • Maximum data rate of 10 Mb/s (synchronous) and 2 Mb/s (asynchronous)
  • 4 channels of high-speed serial

Specifications

Form Factor
PMC
# ARINC Channels
4
Asynchronous
Yes
Front I/O
Yes
Rear I/O
Yes
Synchronous
1
