PMC with ARCNET communications controller


This product reached the end of its lifecycle (end-of-life) on June 30, 2005

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

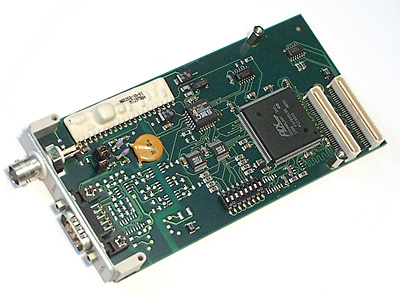

PMC-ARCNET-485 provides an ARCNET controller expansion to a PMC carrier board. It is used for a variety of industrial automation, process control, and automotive applications that requires ARCNET for message communications. The PMC-ARCNET features the COM20020 ARCNET interface controller, which includes a transceiver and dual port RAM. The controller supports a variety of network topologies, including star, tree, and bus. Features an isolated RS-485 differential interface with DC/DC converter. The PMC-ARCNET has both a BNC connector and a DB-9 connector for convenient front-panel I/O access. VxWorks device drivers are available for the PMC-ARCNET. The card is compliant with standard single-wide PMC specifications IEEE P1386.1.
