8 Port Serial Controller

RoHS Compliant

RoHS Compliant


This product reached the end of its lifecycle (end-of-life) on April 30, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

We recommend the following alternative solutions:

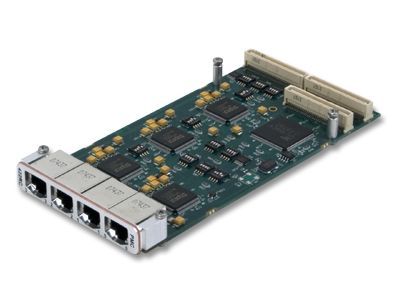

The PMC-422RC is a flexible solution for integrating multiple serial I/O channels onto a Single Board Computer (SBC), VMEbus, or CPCI system. Efficiently packaging 8 serial channels onto a single PMC makes effective use of available PMC sites. Each serial port is implemented with an independent UART with a separate programmable baud rate. Each of the ports in a pair has individually programmable line drivers to set any of the most popular signaling types: RS232, RS422, RS484 (full duplex and half duplex with termination or non-termination option). The signaling characteristics are set with on-board DIP switches. Each serial baud rate is separtely programmed from 150 bits/s to 6.2 Mb/s, depending on the specific crystal used. Additionally, a 16-bit general purpose Timer/Counter with 8 general inputs is provided.

  • 4 RS232 ports can be accessible via front RJ45 connectors
  • All ports accessible on rear I/O J4 with PMC I/O Module (PIM) PIM422RC
  • 8 high-performance 16C550 UARTs with 64 bytes of RX/RX FIFO per channel
  • PMC form factor
  • PCI bus 2.2 target interface compliant up to 33MHz clock, 32-bit bus
  • 8 port RS232/RS422/RS484 serial controller
  • RoHS compliant
