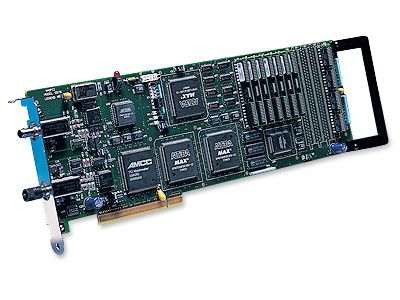

154 Mega Baud PCI-5576 Fiber-Optic Reflective Memory with Interrupts


This product reached the end of its lifecycle (end-of-life) on June 30, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.


PCI-5576 Reflective Memory interface - allows data to be shared between up to 256 independent systems (nodes) at rates up to 6.2 Mbyte/s. Each Reflective Memory board may be configured with 256 Kbyte to 1 Mbyte of on-board SDRAM. The local SRAM provides fast Read access times to stored data. Writes are stored in local SDRAM and broadcast over a high-speed fiber-optic data path to other Reflective Memory nodes. The transfer of data between nodes is software transparent, so no I/O overhead is required. Transmit and Receive FIFOs buffer data during peak data rates to optimize CPU and bus performance to maintain high data throughput.

  • Error detection
  • Any node on the network can generate an interrupt in any other node on the network or in all network nodes with a single command
  • Data transferred at 3.2 Mbyte/s with redundant transfer
  • Data transferred at 6.2 Mbyte/s without redundant transfer
  • Up to 2,000 m between nodes and up to 256 nodes
  • Data written to memory in one node is also written to memory in all nodes on the network
  • High-speed, easy-to-use fiber-optic network (170 Mbaud serially)


Form Factor
Memory Capacity
Up to 1MB


CBL-000-F3-Axx Fiber Cable
