NETernity™ VXS24

VXS24 Full Managed Layer 2/3 24 port Gigabit Ethernet Switch

NETernity™ VXS24

This product entered a Restricted Production Phase (RPP) on December 31, 2015

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all Restricted Production Phase products CLICK HERE.

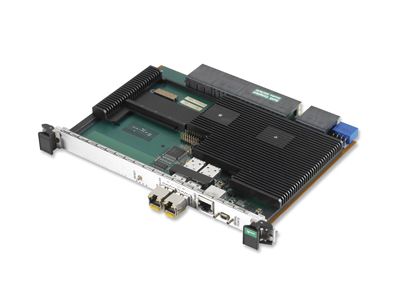

The NETernity™ VXS24 is a fully managed (Layer 2/3) Gigabit Ethernet switch designed to meet the most demanding requirements for network switching in tactical applications. Available in both air- and conduction-cooled formats, and featuring a non-blocking shared memory architecture, the VXS24 provides an 88 Gbits/second core offering full wire speed performance with minimal latency on all ports simultaneously. The VXS24 has 22 ports of 1000 BaseCX to the backplane in accordance with VITA 41.3, plus two SFP ports capable of supporting 100 BaseFX, 1000 BaseSX, 1000 BaseLX or 10/100/1000 BaseTX to the front panel. Each of the 1 Gigabit ports may be configured to allow in-band management. Optionally, a mezzanine capability allows for 10 Gigabit uplink expansion, transitioning from XAUI on the switch packet processor to the appropriate 10G standard at the front panel. The VXS24 can be expanded to a 48-port solution by connecting two VXS24s together via the 10 Gigabit ports. Out-of-band management of the switch is accessible via 10/100 BaseT Ethernet port and RS232 serial port, both available at the front panel. The VXS24 has comprehensive network management capabilities based on FASTPATH® software that include VLANs, link aggregation, spanning tree, IPv4, IPv6, IGMP, traffic policing, Quality of Service (QoS), guaranteed bandwidth and SNMP. Configuration of the switch is via a comprehensive and intuitive web interface, command line interface or SNMP.



  • 24 port managed Gigabit Ethernet switch
  • 22 ports of 1000 BaseCX to rear panel
  • Two ports of optional 1000 BaseT to front panel
  • Optional two 10 Gigabit uplink ports for expansion
  • Layer 2/3 switching with advanced support for VLANs, QoS and IPv6
  • 88 Gbits/second non-blocking switch fabric with full wire speed performance
  • Additional 10/100 BaseT out-of-band management port to front panel
  • VITA 41.3 compliant switch
  • NETernity™ VXS24 Press Release
  • Ethernet/Lan Resource Center




Form Factor
Port Type
10/100/1000BaseT, 1000BaseCX, 1000BaseFX, 1000BaseLX, 1000BaseSX
Management Type
Fully Managed Layer-2/3+
