NETernity™ RM944
6U VME64 24 ports 10/100BaseTX & 2 ports Gigabit Ethernet Layer 2 managed switch
6U VME64 24 ports 10/100BaseTX & 2 ports Gigabit Ethernet Layer 2 managed switch
This product reached the end of its lifecycle (end-of-life) on June 30, 2009Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us. |
Overview

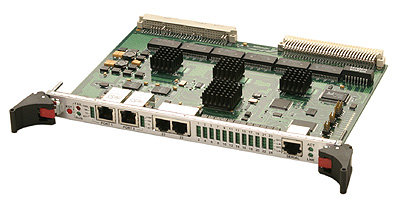

RM944 is an economical 6U VME64 full wire speed, non-blocking Layer 2 managed Ethernet switch. It offers 22 ports of 10/100BaseTX to the rear I/O and two Gigabit ports to the front panel. The Gigabit ports can be either copper (RJ45) or fiber (LC). All the rear ports are routed to the P2 connector of the VME. The management can be done through any of its 24+2 ports. The RM944 supports IEEE 802.1 Rapid Spanning Tree for network loop detection and disabling and for fault-tolerant connectivity.
- SNMP
- Economical solution
- 24 ports 10/100BaseTX and 2 Gigabit ports
- Non-blocking
- Layer 2, full wire speed
- Management Control via any of its ports
- Single slot 6U VME64
- RSTP
- Operator's interface via serial console or telnet session
- Infineon PLB2224 switch fabric
Specifications
Form Factor
VME 6U
Port Type
10/100BaseTX, 1000BaseFX
Management Type
Managed Layer-2
Ports
24
