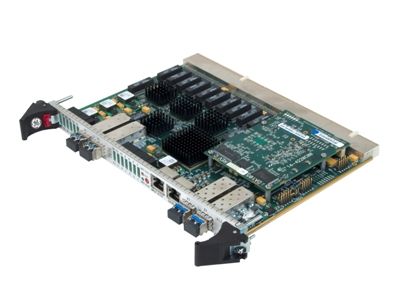

NETernity™ CP921BRC-30x

CP921BRC-30x IPv6 enabled, PICMG 2.16 compliant 6U cPCI 24-port Fully Managed Layer 2/3+ Gigabit Ethernet Switch with OpenWare Switch management environment. Option for 22 rear I/O ports with two 10 GigE (SFP+) & two 1 GigE (SFP) ports on front panel.

RoHS Compliant

RoHS Compliant

NETernity™ CP921BRC-30x

Overview


Flexible, high bandwidth Gigabit Ethernet switch supports failsafe operation


Important new functionality is included in the form of Failover Groups (FOG), a feature that is part of Abaco Systems’ OpenWare™ switch management environment. Responding to the need for very high availability networks, FOG is designed to support redundancy at different levels – redundant links across backplanes from nodes to switches, redundant switches, and redundant links to external networks. This provides fast, application-independent, failover capabilities, suitable for a wide range of network configurations, from the simple to the very complex.



OpenWare Switch Management Environment


The OpenWare software environment, designed specifically for the NETernity range of switches, provides a substantially improved user experience for configuring switch features and capabilities. The OpenWare switch management environment supports a full and robust set of network protocols and management functions including VLANs, Quality of Service, Link Aggregation, SNMP, MSTP, Multicast, etc.: these can be implemented via a serial console, Telnet or the Web.   Additional functionality or customization can be simply incorporated within OpenWare according to customer requirements.

Specifications

Form Factor
cPCI 6U
Port Type
10/100/1000BaseT, 10GigE
Management Type
Fully Managed Layer-2/3+
Ports
24
