NETernity™ GBX16A

NETernity 6U VME IPv6 capable 16-port Gigabit Ethernet managed switch

This product reached the end of its lifecycle (end-of-life) on August 30, 2019

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview

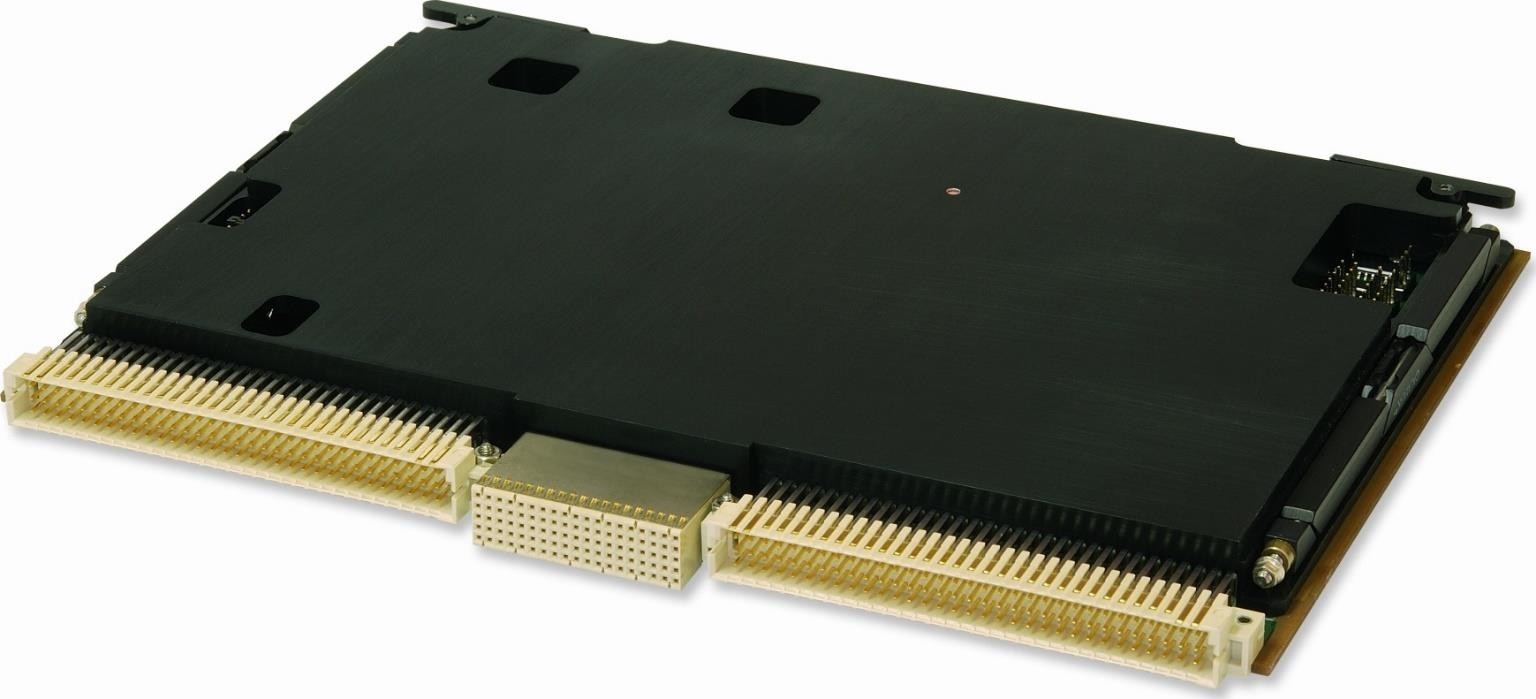

NETernity™ GBX16A is an IPv6-capable full Layer 2/3 managed Gigabit Ethernet switch in 6U VME form factor designed to meet the most demanding requirements for network switching in tactical applications. This 16-port Gigabit Ethernet switch is available in both air- and conduction-cooled formats and features a non-blocking shared memory architecture. This provides a 32 Gb/s core delivering full wire speed performance with minimal latency on all 16 ports simultaneously.

GBX16A supports IPv6, traffic policing and Quality of Service (QoS) functionality such as guaranteed bandwidth allocation and prioritization. The management interface is password-protected and can be accessed by either a web or command line interface.







  • 6U VME Fully Managed Gigabit Ethernet Switch
  • Air- and conduction cooled formats available
  • Complies with 802.x flow control
  • 32 Gb/s non-blocking switch fabric with full wire speed performance
  • Provides guaranteed bandwidth channels
  • Sixteen 10/100/1000BaseT Mbps Gigabit Ethernet switching ports via backplane
  • Optional four extra 1000Base-SX or 1000Base-LX fiber optic ports (IEEE 802.3Z)
    - Up to 24 optical interfaces available with the optional daughter board
  • Full layer -2/3+ management software with advances support for VLANs, QoS and IPv6
  • For Ruggedization Levels, please see the configuration guide under the downloads tab





Specifications

Form Factor
VME 6U
Port Type
10/100/1000BaseT
Management Type
Fully Managed Layer-2/3+
Ports
16
