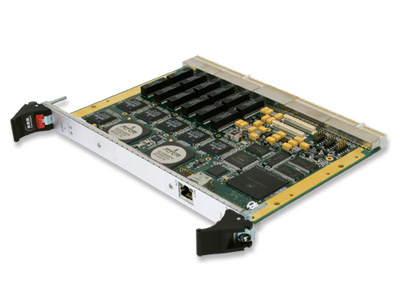

NETernity™ CP6-GESW24M3R

NETernity Rugged 6U CPCI 24-Port Fully Managed Layer-2/3+ Gigabit Ethernet Switch with Air Cooling

NETernity™ CP6-GESW24M3R

This product reached the end of its lifecycle (end-of-life) on October 1, 2012

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.


NETernity™ CP6-GESW24M3R is a 24-port Fully Managed Layer-3 and Layer-3 Gigabit Ethernet switch offering cost-effective high-speed network connectivity for commercial applications. This switch is PICMG 2.16 compliant and can function function either as a fabric board or a node board. When used as a node board, two ports are used to connect the switch board to dual fabric; the remaining 22 ports are routed to rear panel I/O. CP6-GESW24M3R is ruggedized, air cooled and supports an extended operating temperature range.

  • Management interface is through RS-232 (CLI, Telnet), off-band Ethernet (HTTP, SNMP), or in-band Ethernet (HTTP, SNMP)
  • PICMG 2.9 IPMI interface
  • Hot swap design
  • Complete Layer-2 & Layer-3 (routing) management
  • 24-port 10/100/1000BaseT Ethernet line speed switching
  • Rugged, air cooled, conformal coated
  • Extensive Built-In Test (BIT)
  • Fully managed solution
  • Not recommended for new designs


Form Factor
Port Type
Management Type
Fully Managed Layer-2/3+
