8 EIA-485 asynchronous serial ports


This product reached the end of its lifecycle (end-of-life) on December 31, 2009

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

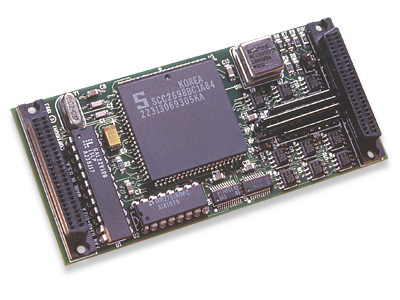

The IP-OCTAL-485 IndustryPack module implements eight EIA-485 asynchronous serial ports, each with DX+, DX- balanced pair signals and a ground. Serial ports are implemented with the Signetics SCC2698B octal UART. Each channel has a 3-character FIFO on its receiver to allow longer interrupt servicing latencies. Eighteen programmable baud rates up to 38.4 kb/s, and programmable bit length, parity, and stop bits are supported.

  • Programmable baud rates in 18 steps up to 38.4 kb/s
  • Four 16-bit timers
  • Support for DX+, DX-, and GND on each channel
  • 3-level FIFOs on all receivers
  • 8 EIA-485 ports on a single-wide IndustryPack
