IP with TTL I/O & Altera design file set

This product reached the end of its lifecycle (end-of-life) on November 23, 2009

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

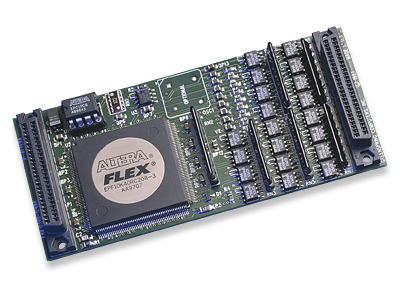

IP-ALTERA-TTL is a single-wide IndustryPack with TTL I/O. It comes with a complete Altera design file-set that can be used as an effective starting point for implementing a custom digital interface or protocols in Altera logic.

  • TTL lines have LineSafe ESD protection circuit
  • 4 RX and 2 TX channels
  • 8 RX and 4 TX channels
  • TTL I/O
