IP with 28 digital I/O lines & Altera design files


This product reached the end of its lifecycle (end-of-life) on December 31, 2005

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

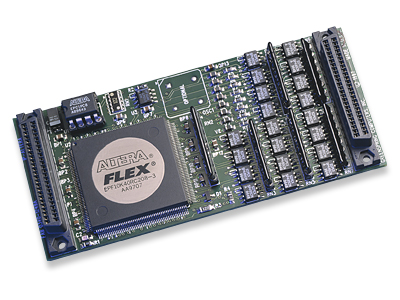

IP-ALTERA-CM50 is a single-wide IndustryPack with 28 lines of digital I/O. It comes with a complete Altera design file-set that can be used as an effective starting point for implementing a custom digital interface or protocols in Altera logic.

  • Direction of each I/O line is programmable
  • TTL lines have LineSafe ESD protection circuit
  • Champ cable and IP-TERM-HD50
  • 20 differential I/O lines and 8 digital TTL I/O lines
