IP-422485-8

RS-422/485 IP Module

 IP-422485-8

This product reached the end of its lifecycle (end-of-life) on February 14, 2017

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

Overview

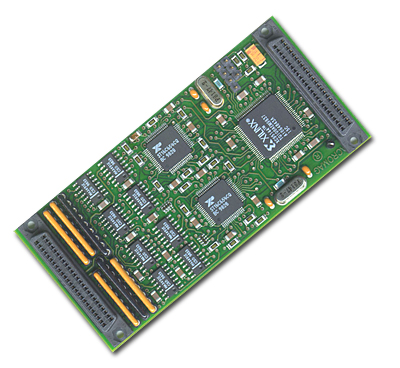

The IP-422485-8 is a single-wide IP Module supported on Abaco Systems' CEI-500 product. The module provides 8 independent, asynchronous serial data ports. Abaco Systems' supporting AIC firmware and IP-AVIONICS-SW software provides a single integrated interface to RS-422, RS-485 and other avionics protocols hosted on the same carrier board. Software configuration helps you quickly set baud rates, character-sizes, stop bits, parity, etc.

Single-wide IP Module

  • 64 byte Rx and Tx buffers
  • Up to 921.6 Kbps
  • 8 Rx/Tx ports per module





Specifications

Form Factor
IP
Application
Lab, Simulation, Test
# ARINC Channels
8
Temp Range
Commercial
Protocol
RS-485
