High-speed acoustic ADC card in a 3U CompactPCI format intended for space, weight and power sensitive high frequency sonar applications. Signal conditioning with 16-bit oversampling ADCs & buffer memory, together with a 64-bit, 66 MHz PCI interface.


This product entered a Restricted Production Phase (RPP) on January 18, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all Restricted Production Phase products CLICK HERE.

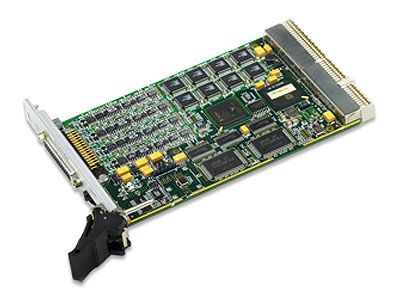

The ICS-1745 is a high-speed acoustic ADC module in the 3U cPCI form factor. Derived from the popular ICS-645D, the ICS-1745 is intended for space, weight, and power sensitive high frequency sonar applications. Remote mine hunting systems based on unmanned or autonomous underwater vehicles (UUVs/AUVs) are a prime example.

The eight analog input channels are sampled at up to 5 MHz with 16-bit resolution. Each channel includes signal conditioning circuitry consisting of programmable gain control (four ranges) and a fixed frequency anti-alias filter. The filters on the standard version of the product have cut-off frequencies of 1.25 MHz; as an option, the frequencies can be changed. Multiple cards can be easily combined to provide synchronous sampling across larger numbers of channels. All control and data I/O is accomplished using the PCI 2.2 interface (64-bit, 66 MHz) which supports universal signaling (5V/3.3V). The PCI Bus master interface on the board provides chained (scatter-gather) and non-chain mode burst transfers. The ICS-1745 provides 16 MBytes of synchronous SRAM buffer memory.



  • Four input voltage ranges: 20 Vpp, 2 Vpp, 0.2 Vpp, 0.02 Vpp differential
  • Onboard signal conditioning with programmable gain
  • 3U CompactPCI format
  • 8 channels (Analog Devices AD9260): 16-bits @ 2.5 MSPS
  • 8 MSample onboard memory in two banks
  • Software drivers available for Windows, Linux
  • Sensor Processing Resource Center




Form Factor
Analog Input
Max. Sampling/Conversion Frequency
5 MHz/ch.
16 MB
