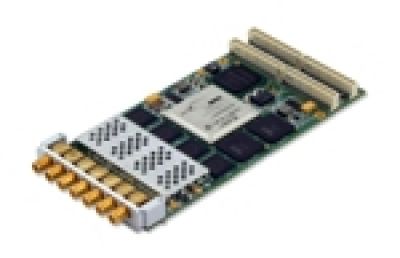

ICS-1555 ADC Module

4-channel digital receiver PMC

ICS-1555 ADC Module

This product reached the end of its lifecycle (end-of-life) on December 1, 2017

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

We recommend the following alternative solutions:

Overview


Cost-Effective Performance in a Small Package

Designed for communications, radar and test and measurements applications, the ICS-1555 Digital Receiver PMC card combines ADC and DSP technologies to provide cost-effective high performance in a single PMC site.

Maximum signal processing capability with minimum power consumption

The ICS-1555 consists of four 16-bit ADCs sampling synchronously at frequencies up to 180 MHz, with the ability to synchronize the sampling to an external reference. Simultaneous downconversion of up to 16 arbitrary signal bands is provided by four Graychip GC4016 digital downconverters (DDCs). A Xilinx® Virtex®-5 SX95T FPGA is provided for user-defined signal processing functions, giving greater capacity and lower power consumption than previous generations.


Ideally suited for demanding application

The ICS-1555 is ideally suited for applications in:

  • Military communications
  • 3G and 4G cellular base station development
  • Signals intelligence
  • Smart antenna
  • Radar beam forming
  • Wireless test and measurement
  • Satellite ground station



Specifications

Form Factor
PMC
Function
Receiver (Analog Input)
Channels
4
Max. Sampling/Conversion Frequency
160 MHz/ch. or 180 MHz/ch.
Resolution
16-bit
User Programmable FPGA
Virtex-5 V5SX95T
Ruggedization
Commercial (benign)

Accessories

  • DRV-1555-VXW - Software development kit for VxWorks operating system
  • DRV-1555-LX - Software development kit for Linux operating system
  • DRV-1555-WIN - Software development kit for Windows operating system
  • HDK-1555 - Hardware development kit included
  • TECHNO-5012-F - PMC to PCI Carrier
  • SPR418A - PCI Express PMC/XMC Carrier Card
  • CN-MMCX - One connector for Analog I/O, Clock, Trigger and one for Sync
  • CBL-1138  Analog input/output cable
