G4ADSP Multiprocessor

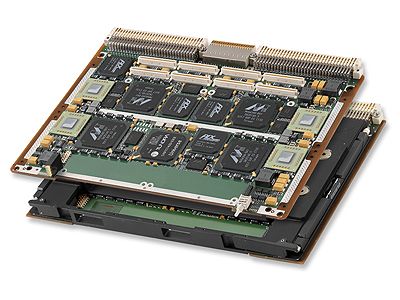

Rugged 6U VME Quad Power Architecture MPC7448 board

G4ADSP Multiprocessor

This product reached the end of its lifecycle (end-of-life) on December 31, 2015

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview


Low risk option

The G4ADSP is aimed at supporting existing customers who need to deploy a form, fit and function replacement for the G4DSP. Abaco Systems offers layered software support that will minimize risk and integration effort, making the G4ADSP a the low risk option.

  • Long term commitment to military/aerospace/defense programs
  • Reliable technology vendor for multi-year defense programs
  • Increase performance of the current system by replacing with the G4ADSP
  • Code compatible with previous generation quad PowerPC boards
  • Up-to-date design provides obsolescence mitigation for the long term

​AXIS-enabled

The G4ADSP provides support for Abaco Systems’ AXIS Advanced Multiprocessor Integrated Software development environment. AXIS provides a quick start for application development and system evaluation with a suite of fully integrated modules for system development, visualization and deployment including example applications such as a distributed corner turn and stress tests. AXISView provides an intuitive GUI for system visualisation and productivity tools that greatly reduce development time and time to market.  AXISLib VSIPL and RSPL optimized DSP, math and function libraries provide a wide range of optimized functions for the PowerPC™ e600/AltiVec platform. AXISFlow supports high throughput, low latency, interprocessor communication (IPC) across all system nodes to maximize system performance, and increase flexibility in the design of the most demanding signal and data processing applications.



Specifications

Form Factor
VME 6U
Processor
7448 @ 1.4 GHz
Mezzanine
2x PMC-X
Ethernet
1000BaseT
Operating System (OS) Support
VxWorks
AXIS Support
Yes
Fabric Interface
PCI, VME, GbE
Memory
1 GB
Ruggedization
Level 4-5 Conduction Cooled

Accessories

  • G4ADSPIO-11  3U rear transition module
