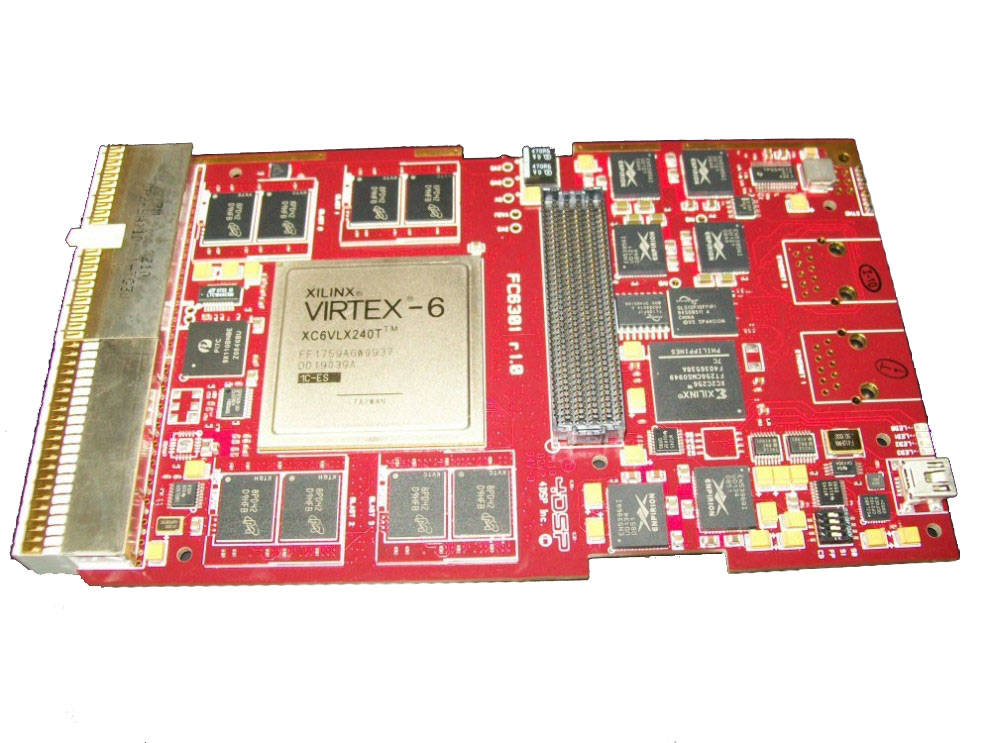

FC6301 FPGA Card

3U CompactPCI with Virtex-6 FPGA

Overview


The FC6301 is a high performance CompactPCI (cPCI) card with advanced digital signal processing capabilities. The design has been targeted for customer-programmable implementations of complex FPGA algorithms for digital signal processing (DSP) applications.

Offered in the 3U cPCI form factor, the FC6301 provides various direct on-board interface options that are closely coupled to the large, fast on-board memory resources of the Xilinx Virtex-6 FPGA.

The FC6301 is an excellent choice for high performance applications that require the use of accelerated frequency-domain algorithms such as with FFTs.

Abaco Systems has many off-the-shelf Intellectual Property (IP) cores for applications that require the highest level of performance.

Board Support Package

Our Board Support Package helps customers get their hardware implementation underway as quickly as possible by providing reference designs, the Stellar IP FPGA development tool, and the 4FM GUI user interface for controlling and monitoring the hardware, as well as other supporting elements.

Specifications

Form Factor
cPCI 3U
I/O
Configurable using FMCs
Mezzanine
Optional FMC site
Memory
Configurable memory options with 4 BLAST sites
User Programmable FPGA
Virtex-6
FPGA Family
Virtex-6
