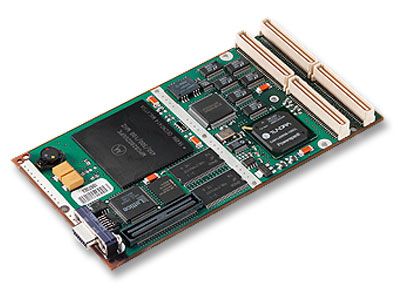

EPMCQ2

PowerQUICC II-based PMC providing a cost-effective solution for applications requiring multiple high-speed serial communications interfaces

EPMCQ2

This product reached the end of its lifecycle (end-of-life) on February 15, 2013

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview


EPMCQ2, a member of the EmPower™ family, is a PowerQUICC II-based PMC providing a cost-effective solution for applications requiring multiple high-speed serial communications interfaces. Fully rugged for defense and aerospace applications, EPMCQ2 also offers significant PowerPC processing capability all within an industry standard PMC form factor. EPMCQ2 provides four high-speed serial channels, capable of RS232, RS422, RS485 operation (software selectable), and configurable for synchronous or asynchronous operation. Two additional channels provide an asynchronous capability useful for development debug and deployed operation on lower traffic lines. A single 10/100BaseT Ethernet channel completes the array of communications options. EPMCQ2's onboard processing power (embedded 603e core) and memory resources are provided such that the protocol overheads associated with typical serial communication formats can be off-loaded from the host CPU.





  • Deployed Test firmware
  • Air- and conduction-cooled formats available
  • For Ruggedization Levels, please see the configuration guide under the downloads tab
  • Extensive software support
  • Monarch capable
  • 64-bit/66MHz PCI 2.1 compatible
  • 16MB Flash
  • 32MB DRAM
  • 2 low traffic asynchronous channels
  • Single 10/100BaseT Ethernet port
  • 4 general purpose I/O lines
  • 4 high-speed synchronous/asynchronous channels
  • Fully rugged
  • PowerQUICC-II base PMC
  • High performance serial communications





Specifications

Form Factor
PMC
# ARINC Channels
6
Asynchronous
Yes
Front I/O
Yes
Rear I/O
Yes
Synchronous
1

Accessories

P0Q2IO-S - P0 Backplane Transition Module provides suitable connectors for compatible Breakout Panels. This product is no longer recommended for new designs. A discontinuance notice has been issued with a last time buy date of February 15, 2013.
