This product reached the end of its lifecycle (end-of-life) on September 1, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

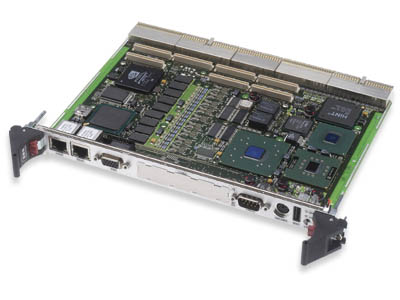

A 6U CPCI all-in-one CPU board with integrated low power Intel Pentium M Processor and dual Gigabit Ethernet channels. The CT9 supports full hot swap and is capable of being used in a system or non-system (peripheral) slot. Adhering to the PICMG 2.16 dual Ethernet specification, the CT9 supports the 64-bit/66 MHz CPCI bus.





  • RoHS compliant with version 3.x
  • Hot Swap(Full) PICMG 2.1 compliant
  • Ultra Compact, 1 slot
  • Intel Pentium M Processor, 1 GHz to 1.8 GHz
  • Optimized for Telecom Applications
  • Extended operation temperature





Specifications

Form Factor
cPCI 6U
Processor
Low power CPUs
# Expansion Slots
3
Maximum Memory
Up to 2 GB DDR SDRAM with ECC
Serial I/O
2
Transition Modules
CTM12
Bus Interface Chip
PLX 6254
Ethernet
Gigabit Ethernet
System/ Peripheral
Both
Ruggedization
Commercial (benign)
