CRS-C4I-3CC2 COTS Rugged System

3U CompactPCI application-ready vehicle computer
CRS-C4I-3CC2

This product entered a Restricted Production Phase (RPP) on November 16, 2015

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

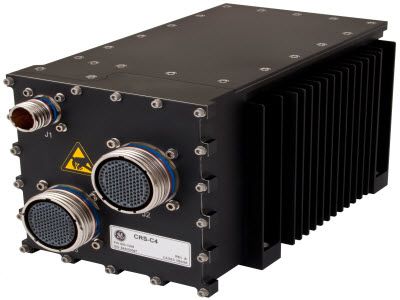

Abaco Systems CRS-C4I-3CC2 Rugged COTS System is a packaged pre-validated 4 slot control computer system fully integrated and ready to be deployed as soon as your application is ready. The CRS-C4I-3CC2 is available without Non-Recurring Engineering costs to lower your program costs and its integrated rugged computing platform lowers your risk thus making it well suited for applications requiring rock-solid reliability such as civilian and military UAVs, manned commercial and military aircraft, helicopters, over- and underwater research vessels, ground vehicles, and locomotives.

Abaco Systems’ COTS-based CRS-C4I-3CC2 Application Ready computer system can be deployed in the field as soon as your application is ready, or use the CRS-C4I-3CC2 as a starting point for multiple application-specific configurations. The arduous task of integrating off the shelf boards has already been  done for you -- shortening your time to project completion. You have one point of contact for all issues and a single part number -- not a collection of parts. The CRS-C4I-3CC2 successfully integrates Abaco Systems boards, and modules, drawn from Abaco Systems’ wide selection of COTS boards, into open modular systems that are tested and qualified for rugged systems deployment.  The CRS-C4I-3CC2 contains a fully integrated set of boards and modules designed  to fulfill control applications.

For CRS-C4I-3CC2 systems containing 1553 or ARINC interfaces, we also include the Integrated Avionics Library, a full suite of C functions that you can use to perform many common card functions, thus reducing your software development cycle time.





  • Rugged convection cooled chassis
    • 4 slot 3U CompactPCI
    • MIL-C-38999 connectors
  • Intel Atom processor single board computer
  • Linux operating system (Windows, VxWorks 6.7 also available)
  • BIT support
  • I/O capabilities
    • Ethernet
    • Serial
    • USB
    • MIL-STD-1553
    • ARINC 429
    • CAN bus
    • DAC
    • ADC
    • Discrete
  • Designed for:
    • Military and civilian UAVs
    • Ground vehicles
    • Helicopters
    • Military and commercial aircraft





Specifications

Cooling
Convection
Form Factor
cPCI 3U
I/O
SSD
Operating System (OS) Support
Windows
Operating Temp
-40˚C to +50˚C
Processor
Intel Atom @ 1.6 GHz
Slots
4
Weight lb (kg)
7.5 (3.4)
