CRS-C2I-3VB1 COTS Rugged System

3U VPX application-ready vehicle computer
CRS-C2I-3VB1

Overview

Abaco Systems CRS-C2I-3VB1 Rugged COTS System is a packaged pre-validated 2 slot control computer system fully integrated and ready to be deployed as soon as your application is ready. The 3U VPX-based CRS-C2I-3VBI is available without Non-Recurring Engineering costs to lower your program costs and its integrated rugged computing platform lowers your risk thus making it well suited for applications requiring rock-solid reliability such as civilian and military UAVs, manned commercial and military aircraft, helicopters, over- and underwater research vessels, ground vehicles, and locomotives.

Abaco Systems' COTS-based CRS-C2I-3VB1 Application Ready computer system can be deployed in the field as soon as your application is ready, or use the CRS-C2I-3VB1 as a starting point for multiple application-specific configurations. The arduous task of integrating off the shelf boards has already been  done for you -- shortening your time to project completion. You have one point of contact for all issues and a single part number -- not a collection of parts. The CRS-C2I-3VB1 successfully integrates Abaco Systems boards, and modules, drawn from Abaco Systems' wide selection of COTS boards, into open modular systems that are tested and qualified for rugged systems deployment.  The CRS-C2I-3VB1 contains a fully integrated set of boards and modules designed  to fulfill control applications.

Abaco Systems includes the Integrated Avionics Library, a full suite of C functions that you can use to perform many common card functions, thus reducing your software development cycle time.





  • Rugged base plate cooled chassis
    • 2 slot 3U VPX
    • MIL-DTL-38999 connectors
  • Intel® 2nd Gen Core™ i7 @ 2.2 GHz
  • Linux operating system
  • I/O capabilities
    • Ethernet
    • Serial
    • USB
    • MIL-STD-1553
    • VGA
  • Designed for:
    • Military and civilian UAVs
    • Ground vehicles
    • Helicopters
    • Military and commercial aircraft





Specifications

Form Factor
VPX 3U
I/O
MIL-STD-1553
Operating System (OS) Support
Linux
Operating Temp
-40˚C to +70˚C
Processor
2nd Gen. Intel Core i7
Slots
2
Weight lb (kg)
12 (5.5)

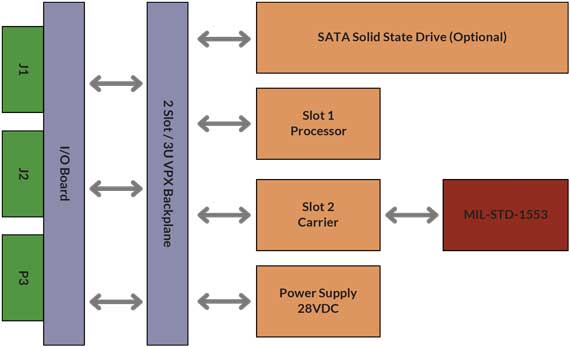

Block Diagram
