Rear-Panel I/O Transition Module for NETernity™ CP6-GESW24M3x Gigabit Ethernet Switches


This product reached the end of its lifecycle (end-of-life) on October 18, 2012

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

We recommend the following alternative solutions:

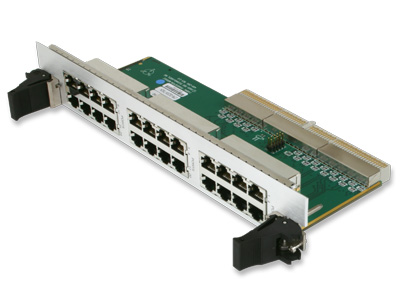

CP6-GESW-TM24 is a rear-panel I/O transition module providing flexible access to NETernity™ CP6-GESW24M3x switch rear-panel I/O. Up to 24 Gigabit Ethernet ports of the switch are accessible from the transition module's stacked RJ-45 connectors. Each port is routed as four 100 Ohm differential pairs. The transition module is IEEE 802.3 compliant. CP6-GESW-TM24 also provides connectivity to the switch RS232 serial management interface that is routed to the back panel.

  • Supports 24-port 10/100/1000BaseT Ethernet line speed
  • 6U CompactPCI form factor with rear-panel I/O
  • Rear-panel I/O support for NETernity™ CP6-GESW24M3, CP6-GESW24M3N, or CP3-GESW24M3R
  • IEEE 802.3 compliant


Form Factor
