CP3-GESW-TM10

Rear-panel I/O transition module for NETernity™ CP3-GESW12M3x Gigabit Ethernet switches

CP3-GESW-TM10

This product reached the end of its lifecycle (end-of-life) on October 24, 2012

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

Overview

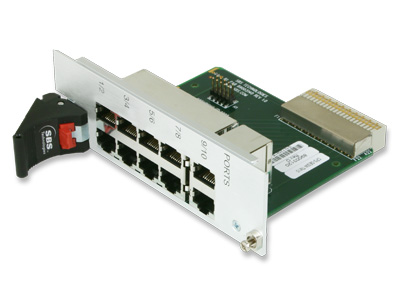

CP3-GESW-TM10 is a rear-panel I/O transition module providing flexible access to NETernity™ CP3-GESW12M3x Gigabit Ethernet switch rear-panel I/O. Up to 10 Gigabit Ethernet ports of the switch are accessible from the transition module's stacked RJ-45 connectors. Each port is routed as four 100 Ohm differential pairs. This transition module is IEEE 802.3 compliant.



  • IEEE 802.3 compliant
  • Supports 10-port 10/100/1000BaseT Ethernet line speed
  • 3U CompactPCI form factor with rear-panel I/O
  • Rear-panel I/O support for NETernity™ CP3-GESW12M3, CP3-GESW12M3R, and CP3-GESW12M3N
  • Provides serial management interface through the back panel
  • Not recommended for new designs

Specifications

Form Factor
cPCI 3U
Description
Rear transition module for Neternity™ CP3-GESW12 switches; RS232 interface
