CP237

CP237 is a 6U CompactPCI Card

CP237

This product reached the end of its lifecycle (end-of-life) on June 30, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

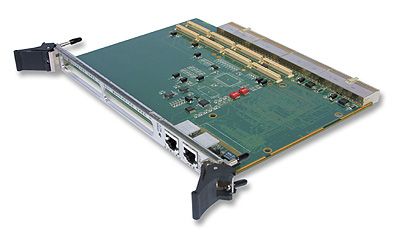

The CP237 is a 6U CompactPCI form factor card that expands to two PMC slots. In addition, an optional Enhanced IDE/ATA disk can be deployed for use with external and/or booting devices. The two PMC slots are 64 bit wide. For PMC cards that route the I/O to the rear, the CP237 routes these signals to the J3 and J4 CompactPCI connectors. For the CP237 to run its secondary PCI bus at 66Mhz, the unit must be de-populated of its optional disk, ethernet and serial port. As per all CompactPCI products from Abaco Systems , the card offers hot insertion capability for higher reliability, and rapid servicing.

  • Ethernet Port 10/100Base-TX
  • 2 PMC slots
  • Capable of 66Mhz PCI
  • 64-bit PCI 6U CompactPCI expansion card
  • RS232 port
  • Optional rotating or flash disk on board for boot/storage purposes

Specifications

Form Factor
cPCI 6U
Capacity
2 PMC
