CONV1553-4

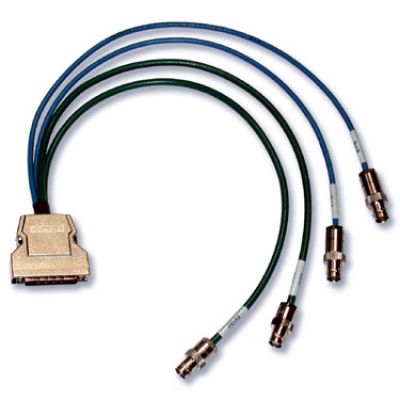

Transitions from each SCSI-2 connector on a VME, VXI or CEI-600-6 front panel to two 18" cables with CJ70 Twinax, 3 lug, 1553 cable jack ends.
CONV1553-4

Overview

Commercial Application Transitions from each SCSI-2 connector on a VME, VXI or CEI-600-6 front panel to two 18" cables with CJ70 Twinax, 3 lug, 1553 cable jack ends. Military Application Transitions from each SCSI-2 connector on a VME, VXI or CEI-600-6 front panel to two 18" cables with CJ70 Twinax, 3 lug, 1553 cable jack ends, and two 18" cables with BNC cable jacks for I/O trigger





  • To: Two male CJ70 jacks,two male BNC jacks
  • (latches)
  • From: SCSI-2 50 pin male
  • Commercial: One included for each IP-708 on: VME-MIO-7, VME-MIO-8, VXI-MIO-8, CEI-600-6
  • Military: One cable included for each IP-1553 or single-channel IP-D1553 on: VME-1553-IP6, VME-1553-IP9, VXI-1553-IP6, VXI-1553-IP9, VME-MIO-3, VME-MIO-5, VME-MIO-6, VME-MIO-
  • Platform: VME, VXI





Specifications

Channels
1
Form Factor
VXI
Platform
VME, cPCI, VXI
Protocol
708, MIL-STD-1553
RoHS
No
