CM4

3U CPCI PowerPC SBC

This product reached the end of its lifecycle (end-of-life) on January 31, 2009

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

CV1

The rugged 3U CPCI PowerPC Single Board Computer with 1 GHz MPC7447A G4 processor, 256 MB DDR SDRAM, 128 MB flash and two Gigabit Ethernet ports can be used as a system controller or peripheral card.

Learn More

Overview

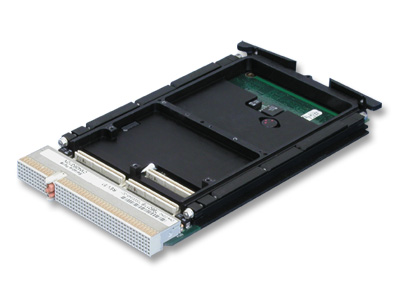

CM4 is a 3U PowerPC CPCI single board computer at 400 or 500MHz for convection or conduction cooling. Up to 256MB 100MHz SDRAM with ECC. 64MB Flash, 64-bit. Fast Ethernet 10/100Mbit. Two async. RS-232 serial channels. Two DMA channels. Four timer/counters. Optional conduction cooling, -40°C to +85°C.

This product has been replaced by the IMP1A.

Conformal coating and Shock/Vibration immunity
Eight bits of discrete TTL I/O w/Interrupt capability
Up to 256 MB SDRAM with ECC (100 MHz)
PowerPC Motorola 7410 at 500 MHz.

Specifications

Form Factor

cPCI 3U

Processor

MPC755 @ 400 MHz

# Expansion Slots

Maximum Memory

Up to 256 MB SDRAM with ECC

Serial I/O

Transition Modules

CM4-TM

Bus Interface Chip

PLX 6254

Ethernet

10/100BaseT

System/ Peripheral

Both

Ruggedization

Level 5 Rugged Conduction Cooled
