CL9

CL9

This product reached the end of its lifecycle (end-of-life) on September 1, 2010

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

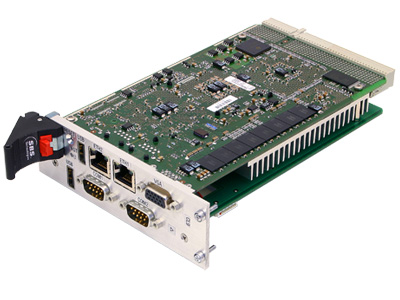

A 3U CPCI Intel Pentium M single board computer with dual Gigabit Ethernet channels, the CL9 supports single or double slot front I/O. It can be equipped with up to 1 GB of DDR SDRAM. Onboard EIDE and two serial ATA interfaces on the rear are available for mass storage.



  • Dual Serial ATA interfaces
  • Two Gigabit Ethernet ports
  • 3U CPCI in single or double slot
  • Intel Pentium M processor, 600 MHz to 1.8 GHz
  • Extended operating temperature

Specifications

Form Factor
cPCI 3U
Processor
Low power CPUs
# Expansion Slots
0
Maximum Memory
Up to 1 GB DDR SDRAM
Serial I/O
2
Transition Modules
CTM15
Bus Interface Chip
TI PCI2050B
Ethernet
Gigabit Ethernet
System/ Peripheral
System
Ruggedization
Commercial (benign)
