CL11

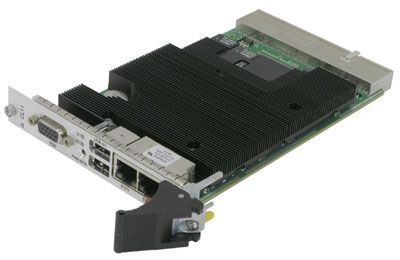

3U CompactPCI Single Slot Dual Core Processor Board

CL11

This product reached the end of its lifecycle (end-of-life) on October 3, 2014

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

Overview


3U Single Slot CompactPCI SBC with Intel Core Duo or Intel Core 2 Duo processor incorporates sophisticated power management technology, eliminating the need for an onboard fan, to provide high performance, rugged computing. The CL11 Intel single board computer supports up to four PCI-express interfaces, six USB 2.0 ports, two serial ATA ports, optional CompactFlash, VGA/SDVO, and one COM port at the backplane. The CL11 can be ordered as either a system or non-system slot single board computer. It is very well suited to low-power embedded computer applications and offers an extended temperature option of –40° C to +85° C for applications in extreme environments.





  • System or Non-system (peripheral mode)
  • Intel Core 2 Duo @ 1.5 GHz, Intel Core Duo up to 2.16 GHz
  • Two Serial ATA interfaces
  • Ultra compact all-in-one PC





Specifications

Form Factor
3U CPCI - Single Slot
Operating System (OS) Support
VxWorks 6.6
Operating Temp
-40°C to +85°C
Type
Single CPU
