ARINC 429 Interface for PMC




This product reached the end of its lifecycle (end-of-life) on January 31, 2014

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

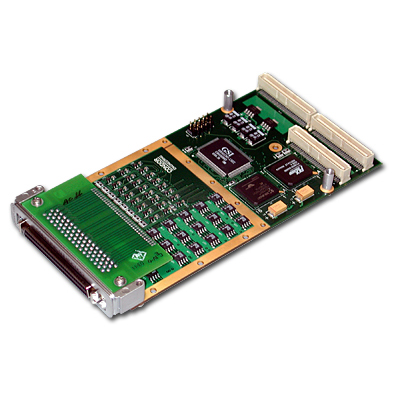

The CEI-830 provides complete, integrated databus functionality for up to 32 channels of ARINC 429, ARINC 575 and selected 2-wire, 32-bit protocols. The CEI-830 supports maximum data throughput on all 32 channels while providing on-board message scheduling, label filtering, multiple buffering options, time-tagging and error detection with support for either 33 MHz or 66 MHz PCI/PMC interfaces. Configurations with support for ARINC 717, ARINC 573, and IRIG-B Receiver (AM or DC/TTL) and Generator (DC/TTL) are optional. Also, BusTools/ARINC, our flexible, Windows-based GUI Bus Analyzer, LabVIEW and LabView Real-Time support is optionally available. The IRIG-B DC level signal can be utilized to synchronize time stamps across multiple boards.

Last Time Buy Date:  January 31, 2014

Last Time Ship Date:  July 31, 2014

Replacement Product:  RCEI-830A

  • Easy-to-use BusTools/ARINC Windows-based GUI Bus Analyzer available
  • High performance, high density interface with large buffers
  • Up to 16 Rx and 16 Tx ARINC 429 channels
  • 1 Rx, 1 Tx Dual-Mode ARINC 717/573 available
  • Carrier Card options available: PCI (-X), 3U cPCI (-3), 6U cPCI (-F) and PCI Express (-U)
  • Advanced, high-level software API included for Windows 7, Vista and XP (32-bit/64-bit), Linux, and VxWorks
  • Includes C/C++, C#.NET, Visual Basic (VB6 and VB.NET), VxWorks, and LabWindows/CVI sample programs
  • Supports maximum data throughput on all channels
  • simultaneously
  • Independent, software-programmable bit rates for all channels
  • Error injection/detection
  • Four bi-directional, avionics-level discrete channels optional
  • IRIG-B Receiver/Generator optional
  • Supports 66MHz, 32-bit PCI operation


Form Factor
Lab, Simulation, Test
# ARINC Channels
2 to 16
Temp Range
Commercial XT
582 2-wire
