CEI-820TX

ARINC Interface for PMC
CEI-820TX

This product entered a Restricted Production Phase (RPP) on December 31, 2012

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

Overview

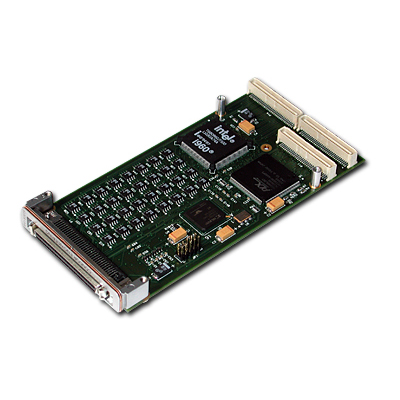

The CEI-820TX is designed for applications where a large number of independent ARINC 429 transmit channels are required. The CEI-820TX PMC Module can be mounted on a wide range of intelligent or non-intelligent PCI, CompactPCI, VME or VXI platforms. Available with either 16 or 32 transmit channels, this intelligent PMC Module provides complete, high-density, integrated databus functionality for ARINC 429 and other related 2-wire avionics protocols. The CEI-820 supports maximum data throughput on all channels while providing on-board message scheduling, automatic slew rate adjustment, along with programmable data rates and parity.





  • Advanced, high-level software API included for Windows, Linux, and VxWorks
  • Includes C/C++, C#.NET, Visual Basic (VB6 and VB.NET), VxWorks, and LabWindows/CVI sample programs
  • Intelligent interface with large buffers
  • Up to 32 Tx and 1 Rx ARINC 429 channels
  • PMC module form factor
  • Carrier Card options available: PCI (-X), 3U cPCI (-3), 6U cPCI (-F) and PCI Express (-U)







Specifications

# ARINC Channels:
32
Application
Lab, Simulation, Test
Form Factor
PMC
Protocol
575
Temp Range
Commercial XT
