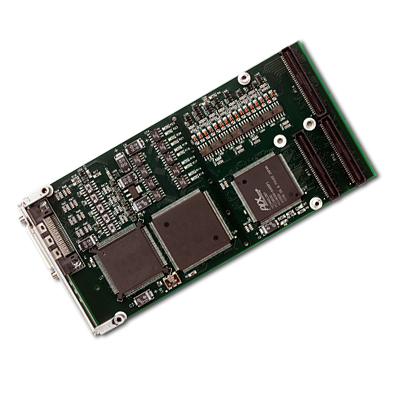

CEI-820

ARINC 429 Interface for PMC

CEI-820

This product reached the end of its lifecycle (end-of-life) on June 30, 2011

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.
To see all end of life products CLICK HERE.

We recommend the following alternative solutions:

Overview


The intelligent CEI-820 provides complete, integrated databus functionality for ARINC 429 and related avionics protocols. The CEI-820 supports maximum data throughput on all channels while providing on-board message scheduling, label filtering, multiple buffering options, time-tagging, error detection and avionics-level I/O discretes. Programmable receive level thresholds are standard. Ruggedized and conductively cooled configurations with extended operating temperatures are optional. Support for 2-wire avionics protocols including ARINC 419, 561, 571, 573, 575, 582 and 717 is available. Contact the factory about CSDB, RS-422 and ARINC 561 6-wire support.

This product is in a Last Time Buy (LTB) window while supply lasts. The LTB is planned to continue through to the end of June 2011, after which this product will no longer be sold by Abaco Systems (firm, non-cancelable, subject to availability). Abaco Systems will continue to honor existing warranty terms for this product pending avaiability of required components and processes.

Product Lifecycle Management services are recommended. Click on the tabs below if you require documentation, software or support. If you have questions about this product, or any other Abaco Systems product, including delivery, migration support to the latest design products, comparative price benefit of latest products, or evaluation needs for latest products, please contact u.
>





  • Advanced, high-level software API included for Windows, Linux, and VxWorks
  • Includes C/C++, C#.NET, Visual Basic (VB6 and VB.NET), VxWorks, and LabWindows/CVI sample programs
  • Carrier Card options available: PCI (-X), 3U cPCI (-3), 6U cPCI (-F) and PCI Express (-U)
  • Conductive cooling optional
  • Extended operating temperature range optional
  • Up to 8 Rx and 8 Tx ARINC 429 channels
  • Intelligent, high performance interface with large buffers
  • Support for 2-wire avionics protocols including ARINC 419, 561, 571, 573, 575, 582 and 717 is available. Contact the factory about CSDB, RS-422 and ARINC 561 6-wire support.





Specifications

Form Factor
PMC
Application
Lab, Simulation, Test
# ARINC Channels
2 to 8
Temp Range
Commercial XT
Protocol
717
Ruggedization
Conduction Cooled
