CC11

3U CompactPCI Dual Slot Dual Core Processor Board Available as a System or Non-system Single Board Computer

CC11

This product reached the end of its lifecycle (end-of-life) on October 3, 2014

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

Overview

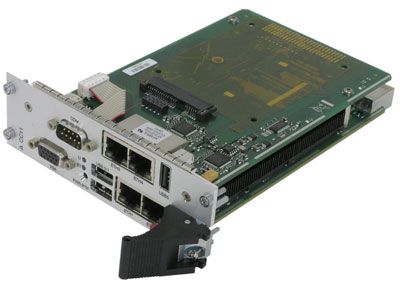

The CC11 3U Dual Slot CompactPCI SBC with Intel Core Duo or Intel Core 2 Duo processor incorporates sophisticated power management technology, eliminating the need for an onboard fan, to provide rugged, high performance computing.

The CC11 supports up to four PCI-express interfaces, six USB 2.0 ports, three serial ATA ports, and VGA/SDVO and is available as either a system or non-system slot single board computer. The CC11 contains an integrated SATA or EIDE hard disk or CompactFlash and offers either a DVI interface or a COM2 port on the front. An audio interface is another available option. The CC11 is very well suited to low-power embedded computer applications and offers an extended temperature option of –40° C to +85° C for applications in extreme environments.





  • Three Serial ATA interfaces
  • Flash drive or local hard disk
  • Up to 2 GB DDR2 SDRAM
  • Intel Core 2 Duo @ 1.5 GHz, Intel Core 2 Duo up to 2.16 GHz
  • System or Non-system (peripheral mode)





Specifications

Form Factor
3U CPCI - Dual Slot
Operating System (OS) Support
VxWorks 6.6
Operating Temp
-40°C to +85°C
Type
Single CPU
