This product reached the end of its lifecycle (end-of-life) on November 1, 2005

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

Overview

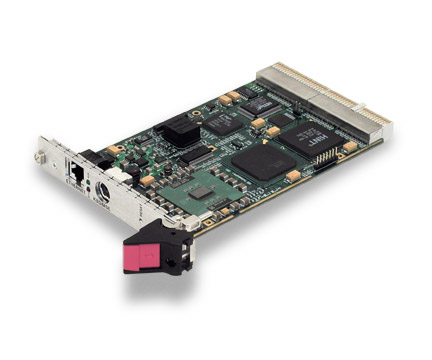

A CompactPCI Intel Single Board Computer (SBC) with a 650 MHz Celeron Processor Ultra Low Voltage (ULV) processor in a convection cooled 3U form factor. The CA3 is designed for embedded, high performance processing applications using PCI-based 32-bit architecture. The CA3 includes 256 MB of SDRAM and 512 KB of boot flash. For increased flexibility, the CA3 includes two RS-232 serial ports, two USB ports, a parallel port, front-panel PS/2 keyboard and mouse port, floppy drive interface, and an UltraDMA33 ATA interface for attaching a IDE hard drive or flash disk. The CA3 also includes two fast Ethernet ports for network accessibility through the front panel or rear I/O.



  • 256 MB SDRAM
  • Two RS-232 serial ports
  • Two 10/100BaseT Ethernet ports
  • Ultra Low Voltage (ULV) processor
  • 650 MHz Intel Celeron Processor

Specifications

Form Factor
cPCI 3U
Processor
Low power CPUs
# Expansion Slots
0
Maximum Memory
Up to 256 MB SDRAM
Serial I/O
2
Bus Interface Chip
PLX 6254
Ethernet
10/100BaseT
System/ Peripheral
Both
Ruggedization
Commercial (benign)
