IndustryPack carrier for AT bus


This product reached the end of its lifecycle (end-of-life) on October 30, 2004

Please refer to downloads section below if you require documentation or software. If you have any questions or require product support, including help migrating to our latest products, please contact us.

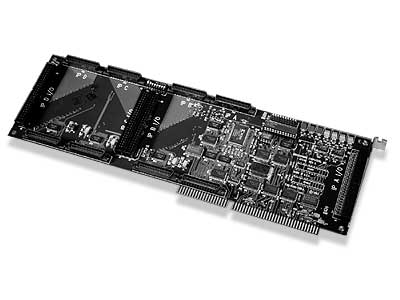

ATC40 holds four IndustryPack modules in a single ISA (PC/AT platform) slot. The ATC40 is typically installed in a 386, 486 or Intel® Pentium® Processor based system, although some workstations use ISA as an I/O bus.The ATC40 permits slave and interrupt access from the host processor to the IndustryPacks. The ATC40 typically resides in the ISA address space above one megabyte. This requires the use of a DOS extender (such as Phar Lap) if running DOS. Advanced operating systems such as Windows®, OS/2®, SCO Unix®, and OS-9000™ can directly address high memory. The ATC40 may be set to occupy 16 Kbytes below one megabyte for DOS compatibility without an extender. Both byte and 16-bit word accesses are supported.

  • Holds 4 IPs
