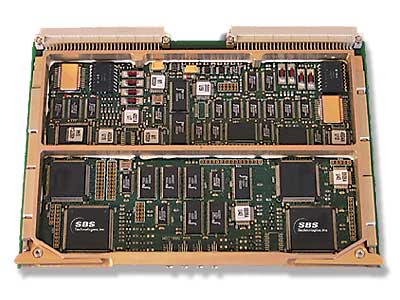

ASF-V6CC
Single function for VMEbus
Single function for VMEbus

Overview
ASF-V6 supports the requirements of most VME applications for integration, test, simulation and test equipment applications. The ASF-V6 provides a flexible, single function, one to four channel, dual redundant MIL-STD-1553 interface to the VMEbus system, including independent operation as a Bus Controller (BC), Remote Terminal (RT), or dual function Bus Monitor (BM).
- Advanced Single Function (ASF)
- Optional 48 bit IRIG-B clock input
- Available with one to four channels
- Extended temperature, conductive cooled, and multiple RT versions available
Specifications
Form Factor
VME
Application
Rugged
Temp Range
Commercial
1553 # Channels
1 or 2
IRIG Time Code Option
Yes
Downloads
Software & Drivers
- (F005) Full Function S1
- (F022) IRIG Decode & Free Run O
- (F023) IRIG Host Load and Free Run D
- (F051) Full Function Custom A
- (F057) Full Function B2 - No DMA Capability D
- (F063) ASF-V6 Conductive Cooled Enviromental Test Firmware C
- (F064) ASF-V6 Conductive Cooled Production Firmware E4
- (F091) ASF-V6 Conductive Cooled Production Firmware, ENC99/DEC99 C
- (F104) Full Function, B1 Protocol. IRIG Decode and Free Run B
- (F105) Full Function, F-14 Protocol B
- (F110) Full Function for MRT Option A
Manuals
Notices
- AN-013 Moving from SBS to Abaco 1553 Products
- Custom Features for B2 Protocol
- Extended Remote Terminal Data Buffers
- F005 Release Notes
- F022 Release Notes
- F023 Release Notes
- F051 Release Notes
- F057 Release Notes
- F063 Release Notes
- F064 Release Notes
- F091 Release Notes
- F104 Release Notes
- F105 Release Notes
- F110 Release Notes
- F14D Protocol Changes for ABI/ASF V6
- Porting Applications from V3 to V6
- AN-15 BusTools/1553-API and Core API Software Comparison
